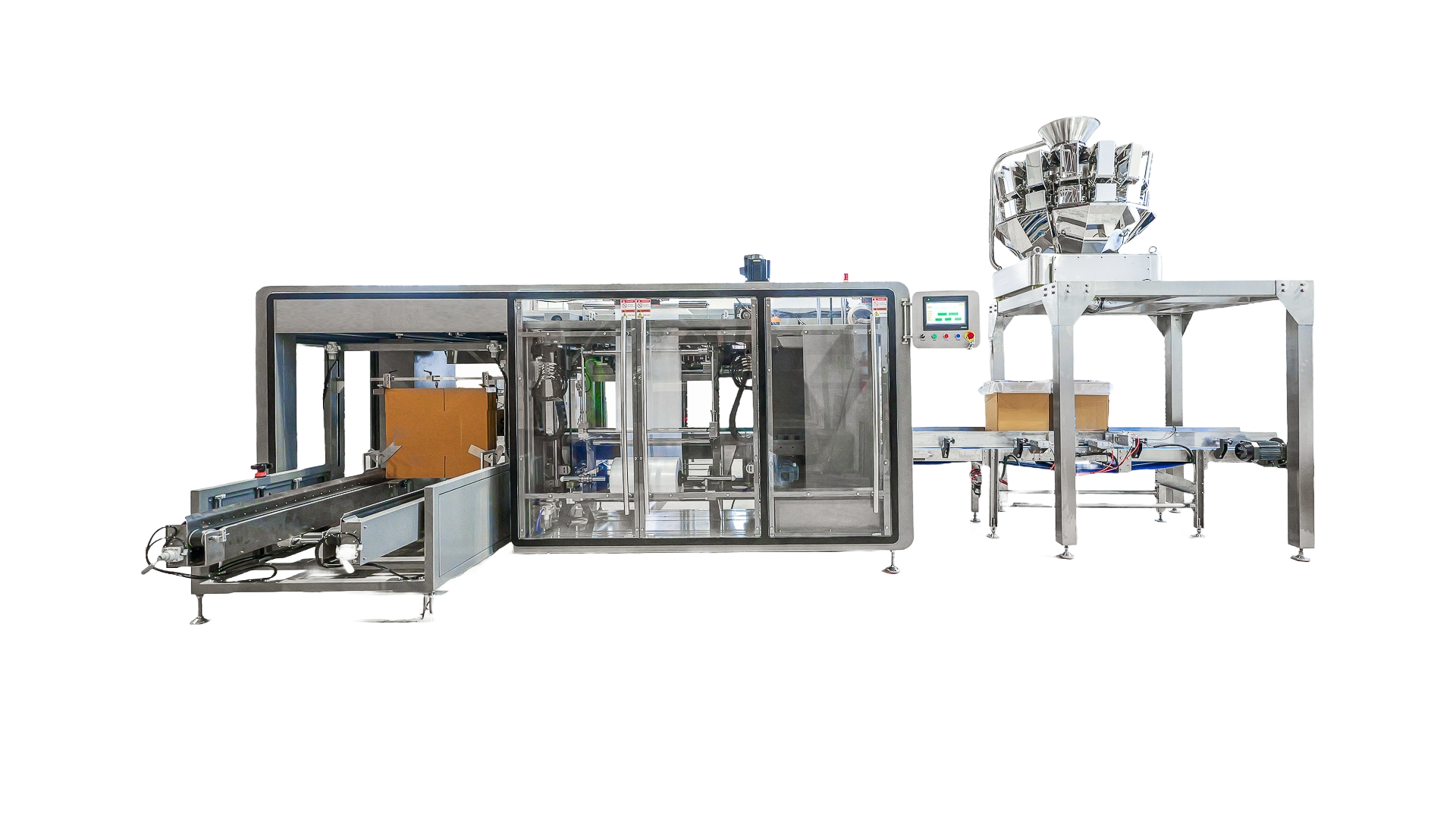

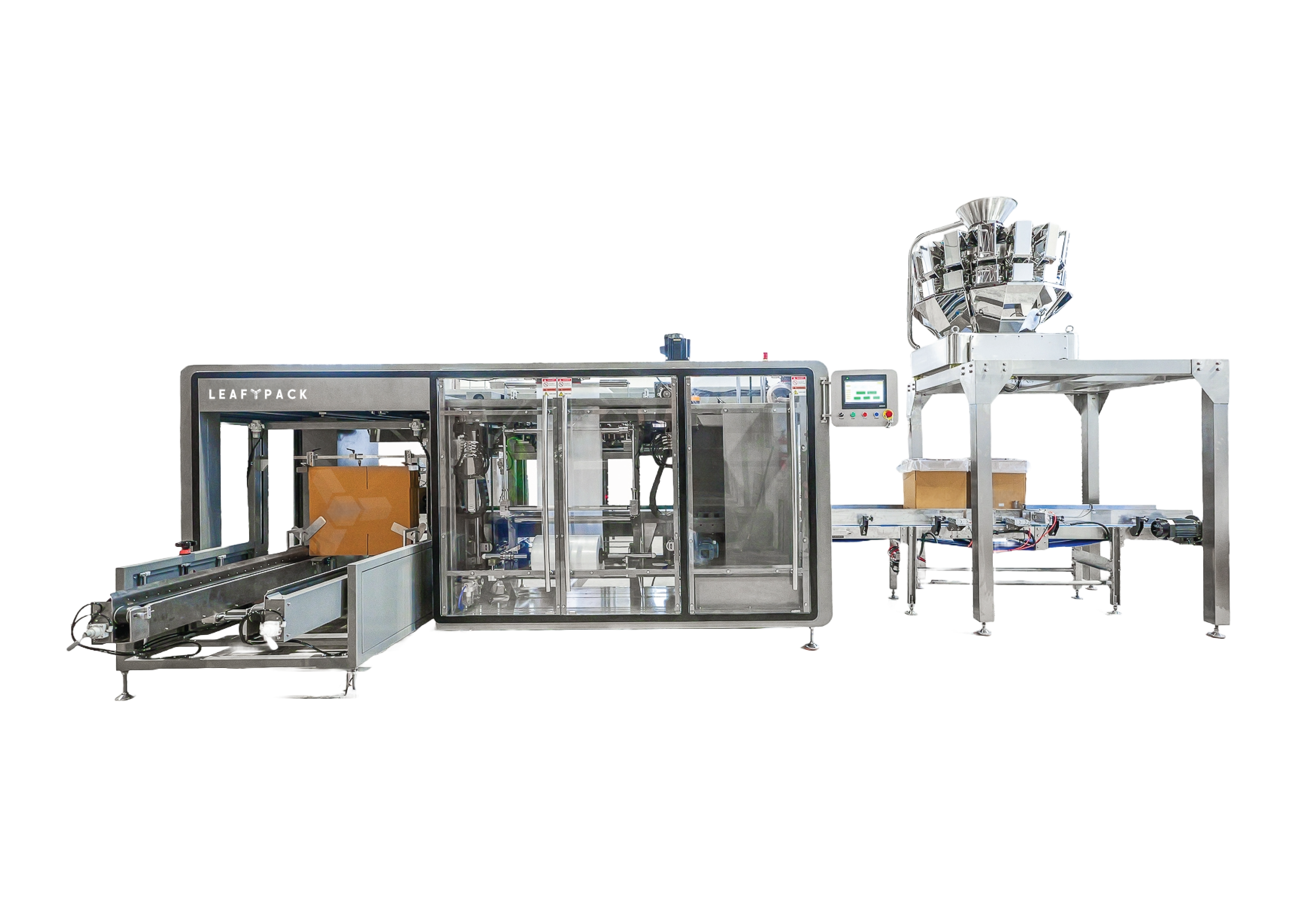

ComboPack Case Former & Bag Inserter

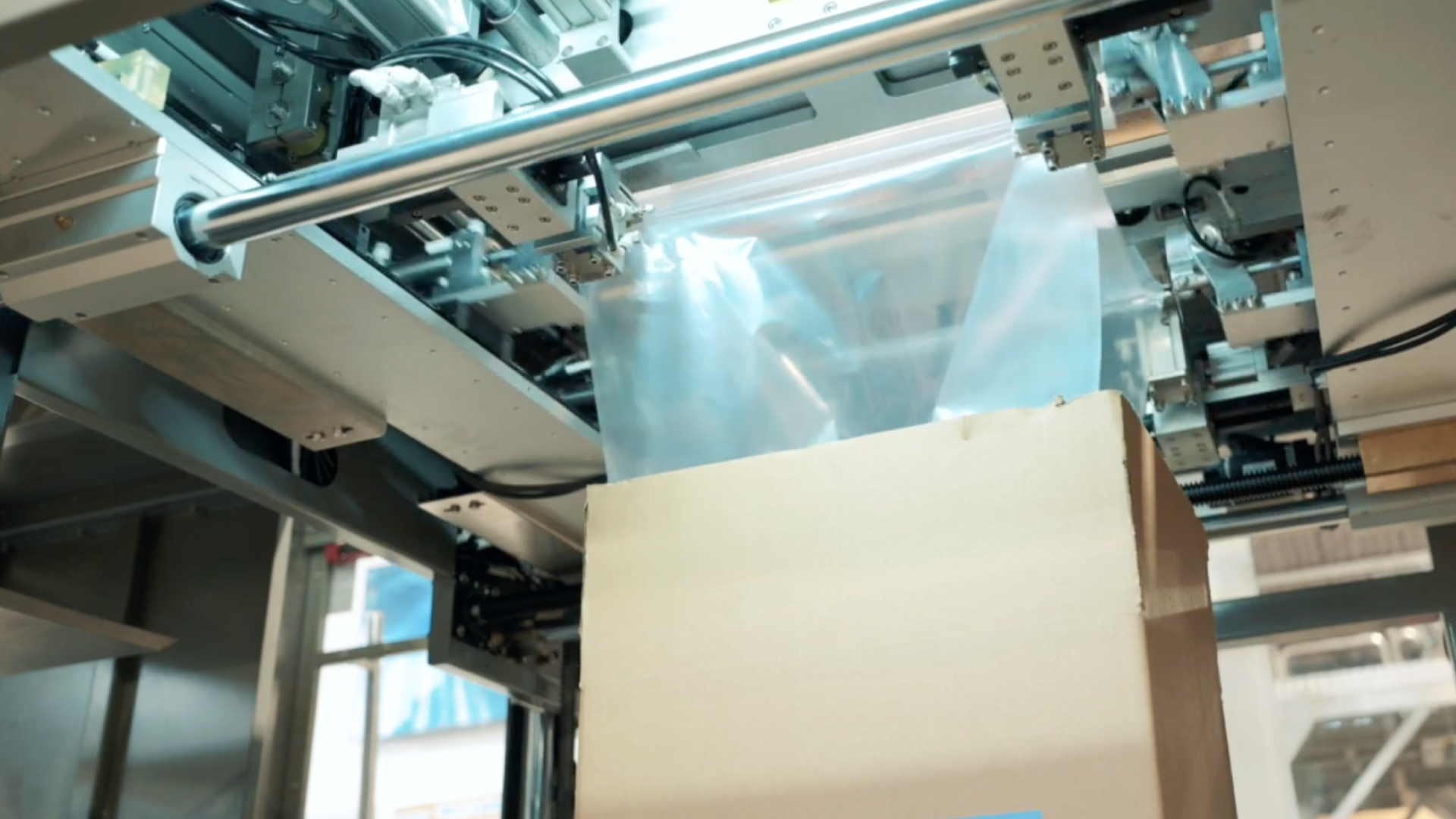

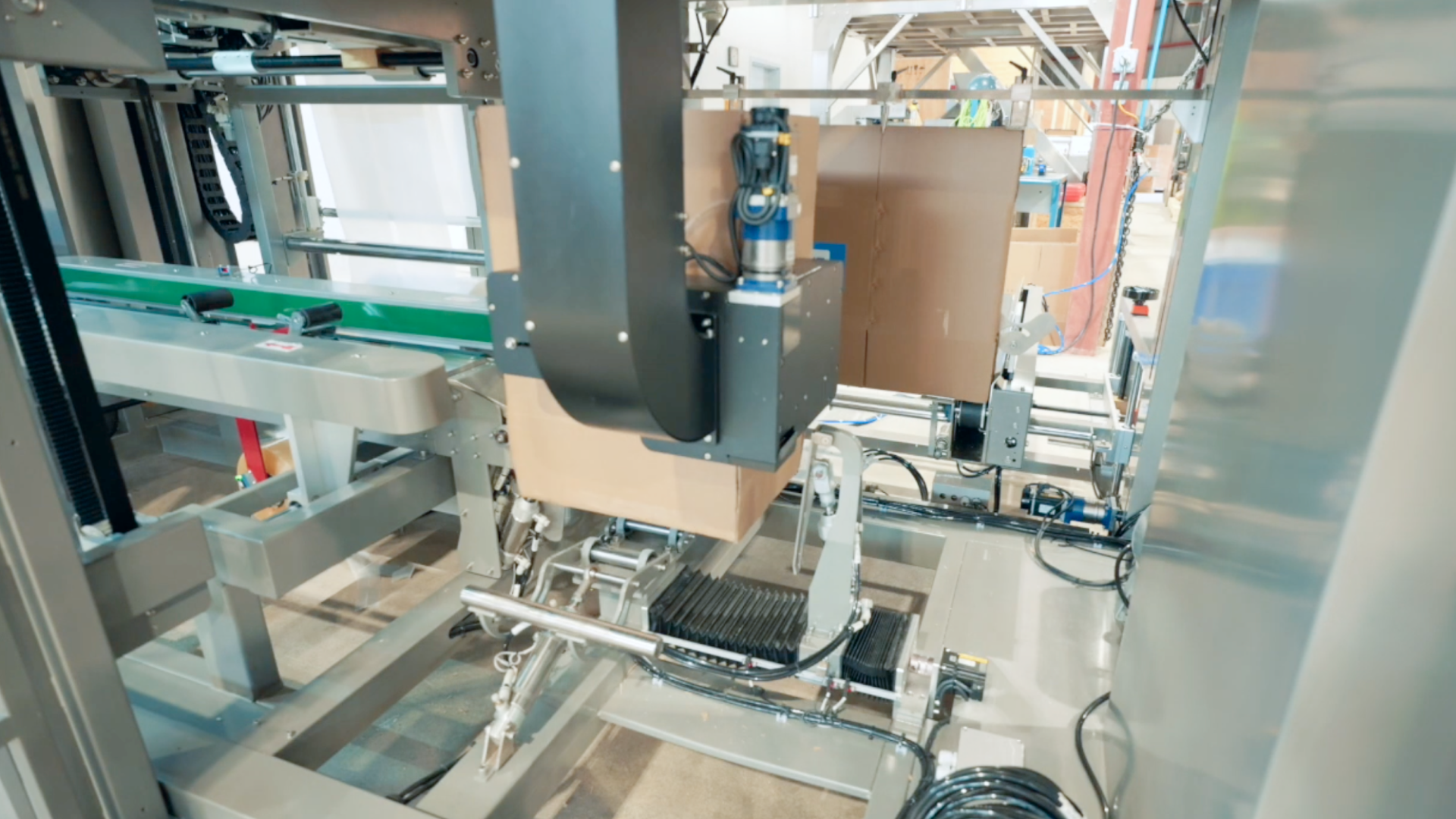

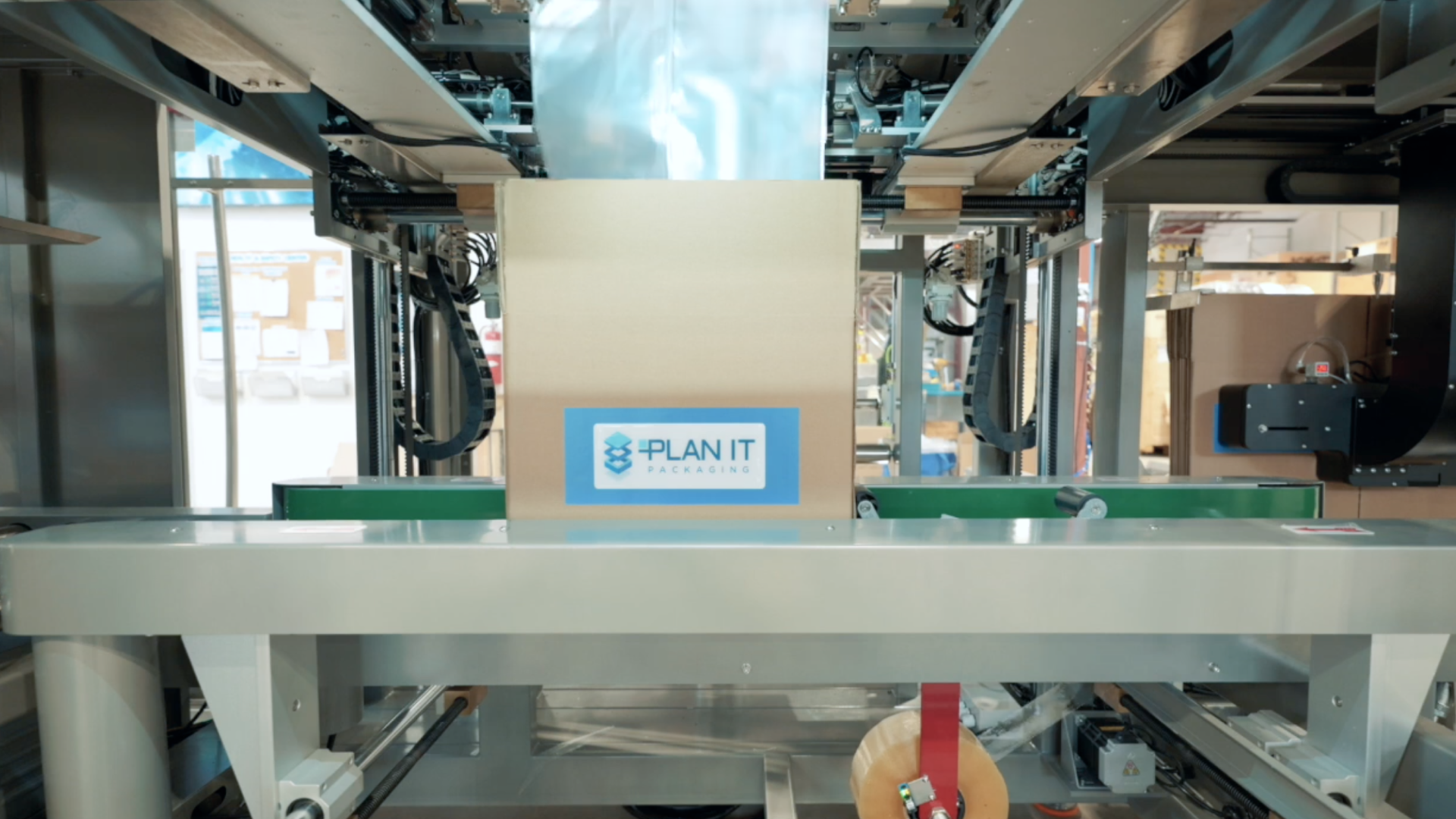

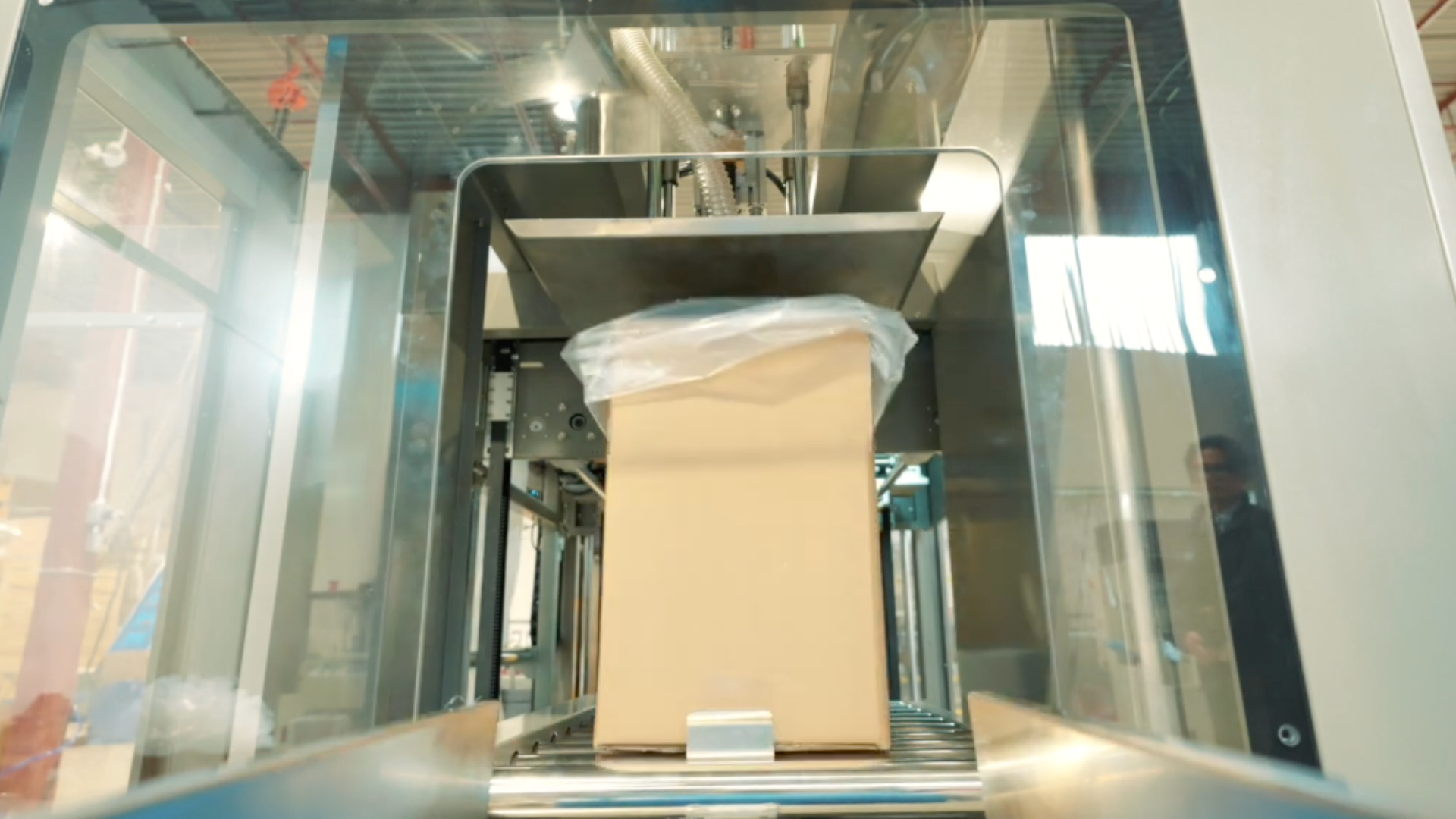

Innovative bag-in-box system combining a case former and automatic bag inserter. Automates tasks like case erecting, bag insertion and sealing for bulk bagging processes. Handles cases up to 10 per minute with bag sizes 300–500 mm long, 300–400 mm wide and 300–400 mm high. Includes a discharge table around 650 mm high; machine dimensions 3700 × 1850 × 2100 mm; weight approximately 2800 kg. Power supply 380 V/50 Hz; air consumption 600 NL/min at 0.6–0.8 MPa.

Handles up to 10 cases per minute with case sizes 300–500 mm long, 300–400 mm wide and 300–400 mm high. Machine weight ~2800 kg and dimensions 3700×1850×2100 mm.
