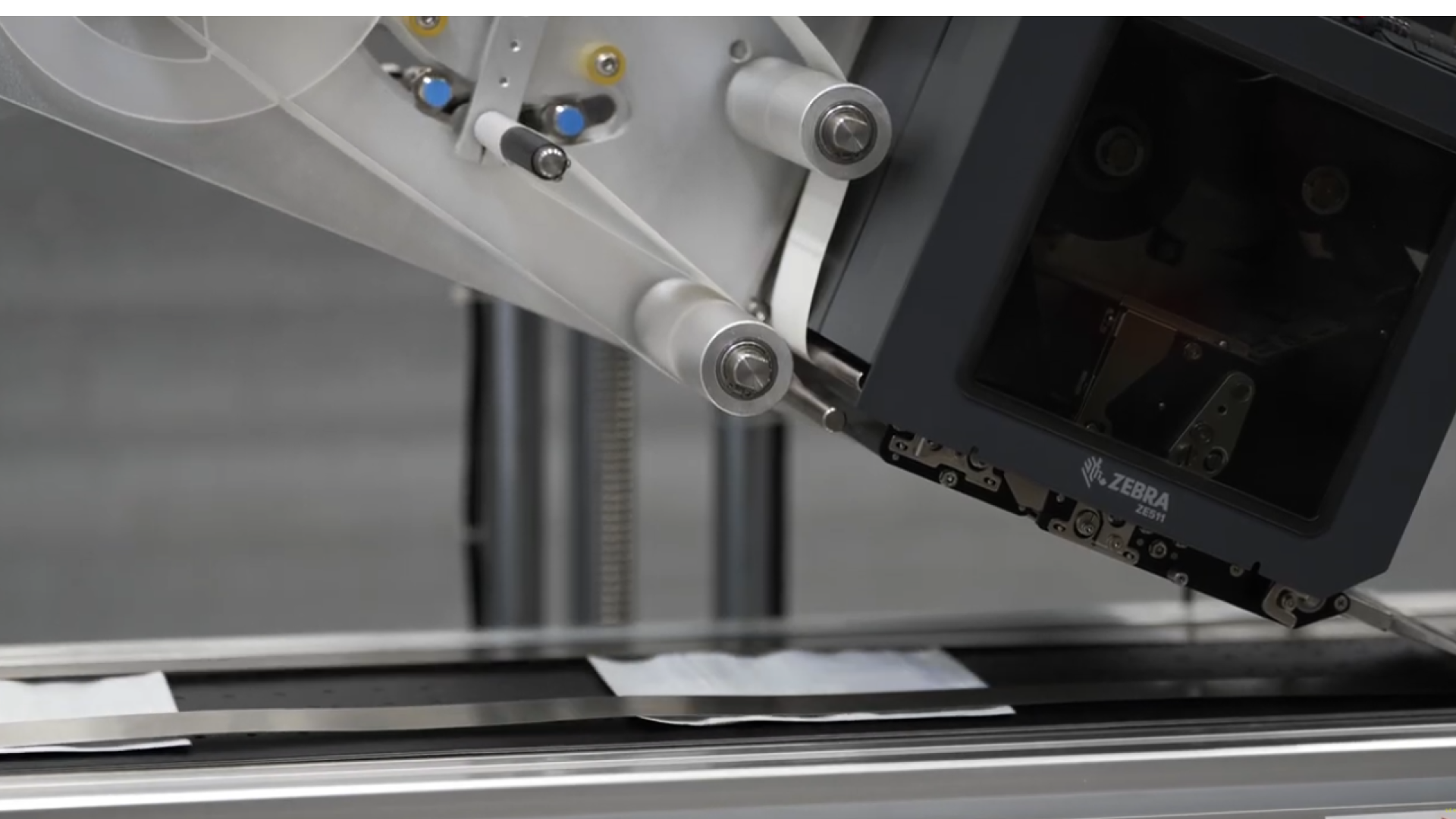

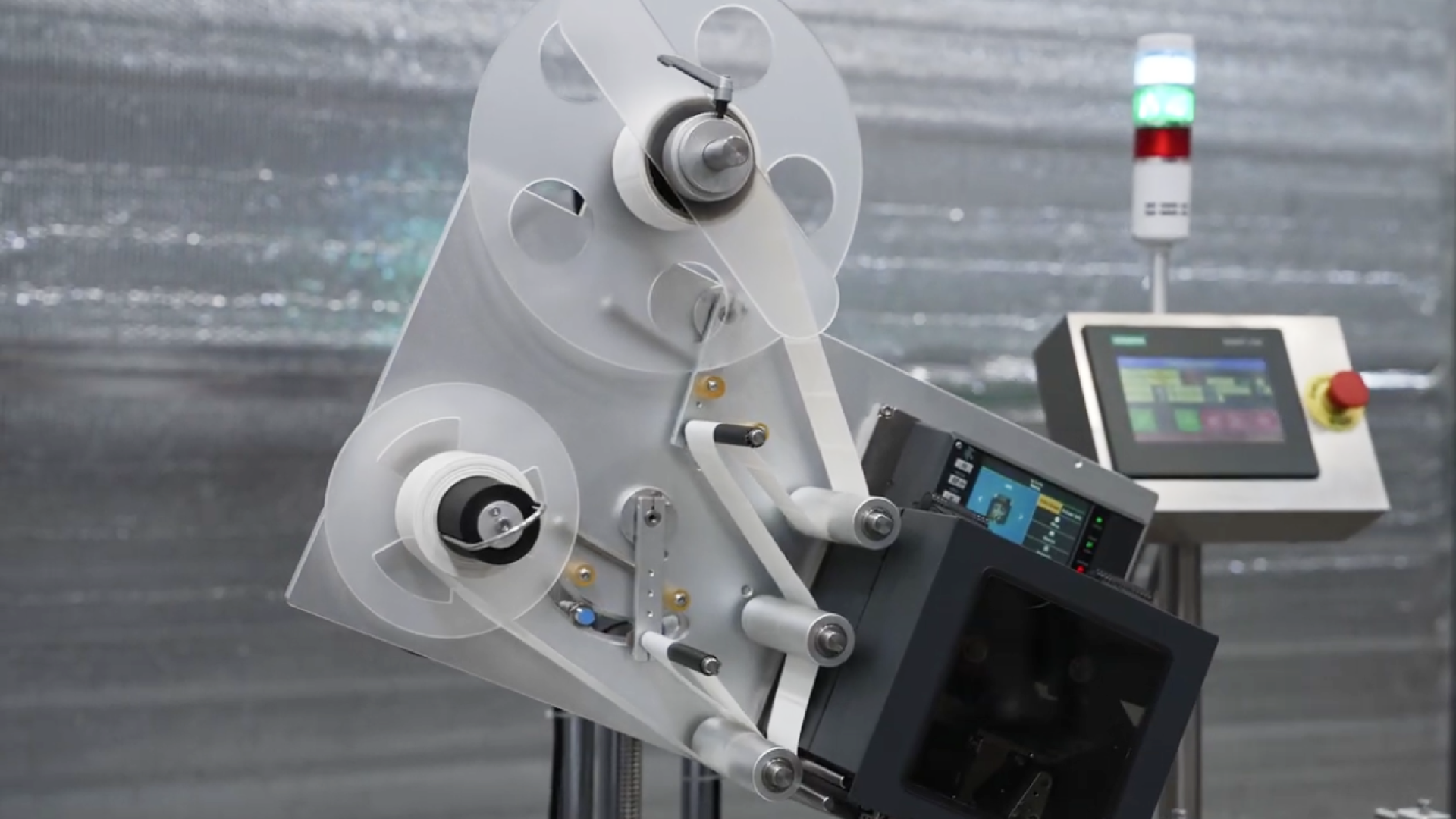

Flat Pouch Labeler

Made in Germany with IP65 dust and water resistance. Labeling machine for stand-up and zipper pouches; speeds of 50–150 units per minute depending on product and label size. Uses a German NOVEXX drive and features ±1 mm labeling accuracy. Handles tag sizes 20–300 mm long and 30–300 mm wide; label inner diameter 76 mm and outer diameter up to 350 mm. Requires 72 PSI air and 220 V power; dimensions 2200 × 1000 × 1300 mm.

‍

• Driver: German NOVEXX
• Max Speed: 50-150 (depends on product and label size)
• Labeling Accuracy: ±1.0 mm
• Label Inner Diameter: 76 mm
• Label Outer Diameter: 350 mm(max)
• Label Sizes: L: 15-300mm，W:15-110mm
• Tag Sizes: L: 20-300mm , W:30-300mm
• Air Requirements: 5kg/cm ² / 72 PSI
• Voltage: 110V or 220V
• Machine size: 2200（L） 1000 (W) 1300 (H) mm
