RotoDuplex

Machine Description

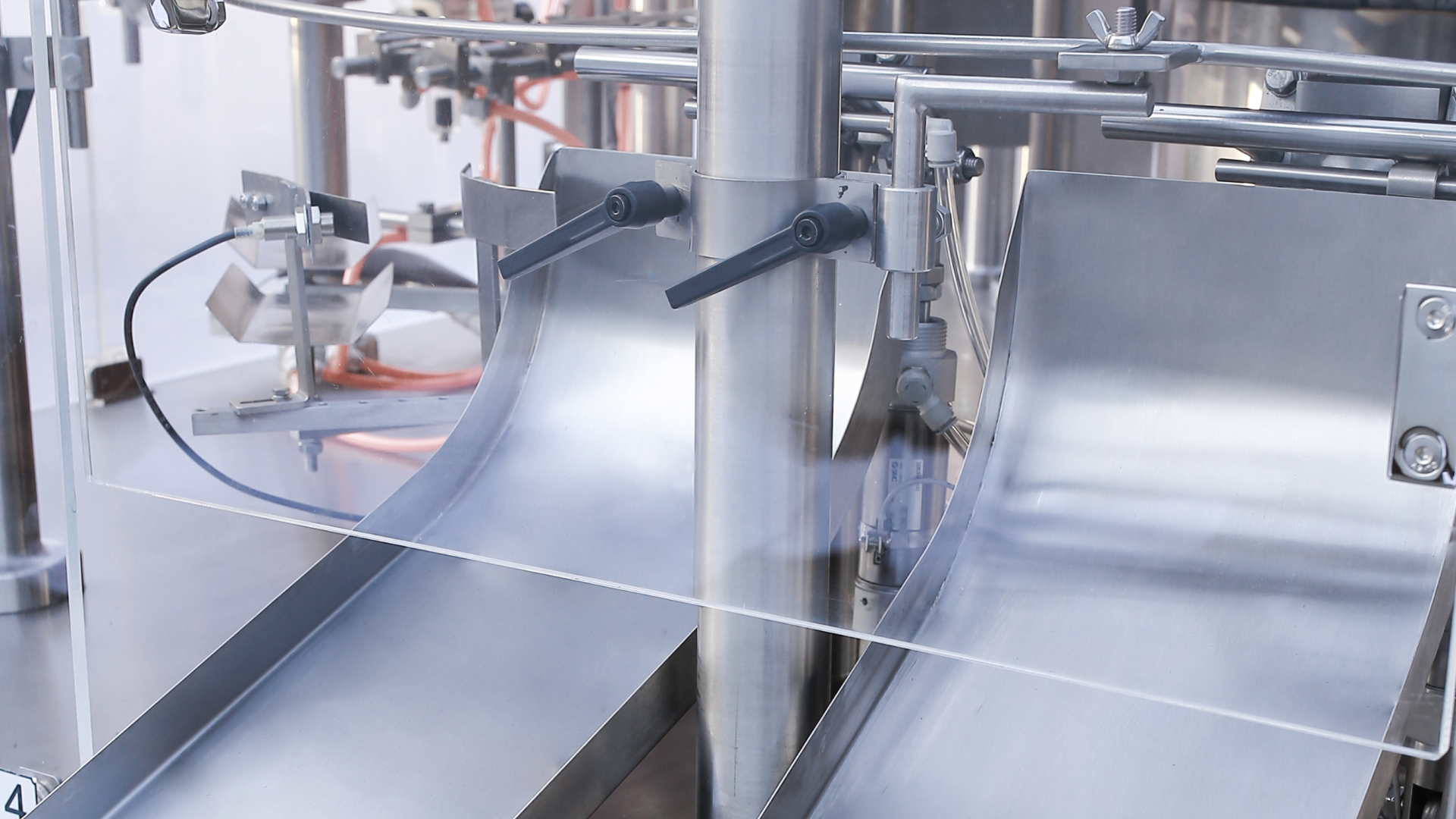

The RotoDuplex is the two-lane version of the RotoBagger. It opens, fills and seals two pre-made pouches at once, which doubles output without doubling floor space or operators: 35 to 50 bags per minute on flower and 50 to 70 on edibles.

It is built for producers running multiple shifts who want one line to keep up with a dual multihead weigher. Same servo changeover, touchscreen recipes and pouch range as the RotoBagger, including the 1900 (90–190 mm) and 2100 (100–210 mm) bag widths.

Runs zipper and child-resistant zipper pouches. Zippers must arrive pre-opened from your bag supplier; the machine does not open zippers. Lead time is 16 to 18 weeks from order, and financing is available through NEC Financial.

Common questions

How fast is the RotoDuplex?
35 to 50 bags a minute on flower and 50 to 70 on edibles. It fills two pouches per cycle.

What bag sizes does it take?
The 1900 model takes bags 90 to 190 mm wide. The 2100 model takes bags 100 to 210 mm wide.

What power and air does it need?
220 V three phase power and at least 20 CFM of compressed air at 90 PSI.

How many operators does it need?
One. The operator loads bags and watches the line.

Does it open zipper pouches?
No pouch machine opens zippers. Order your child-resistant zipper pouches with the zipper pre-opened and the machine fills and seals them.

What is the lead time?
16 to 18 weeks from order. Financing is available through NEC Financial.

Related guides

Machine Features

  • Duplex: 35–50 bags per minute on flower, 50–70 on edibles
  • Two pouches opened, filled and sealed in parallel
  • Servo-driven changeover with recipe memory on the touchscreen
  • Pairs with dual multihead weighers and depositors
  • Gusset opening station
  • Optional: gas flush, tamping station, product plunger, washdown configuration

Specifications

Speed: 35–50 bpm flower, 50–70 bpm edibles (two lanes)

Bag width: 1900 model 90–190 mm, 2100 model 100–210 mm

Pouch types: Flat, stand-up, gusseted, quad-seal and zipper pouches, including child-resistant. Zippers must be pre-opened

Electrical: 220 V, 3 phase

Air: At least 20 CFM at 90 PSI

Lead time: 16–18 weeks
